STM32G0316-DISCO

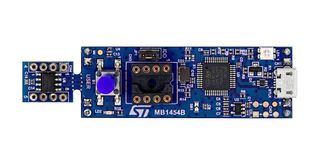

The STM32G0316-DISCO Discovery kit helps to discover features of STM32G0 in SO8 package. This discovery kit offers one SO8 to DIL8 module designed with the STM32G031J6 microcontroller and allows the user to develop and share applications. It includes an on-board ST-LINK/V2-1 to debug and program the embedded STM32 microcontroller. The STM32G0316-DISCO Discovery kit is operated by plugging it into a PC through a standard USB Type-A to Micro-B cable.

• STM32G031J6 Arm Cortex M0+ core-based MCU, featuring 32KB of flash memory and 8KBs of SRAM
• 1 user LED
• 1 reset/user push-button
• ST-LINK Micro-B USB connector and DIL8 socket to ease programming of the STM32 MCU
• On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability
• Comprehensive free software libraries and examples available with the STM32Cube
• Supports IAR™, Keil® and GCC-based IDEs

Uyarılar

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
