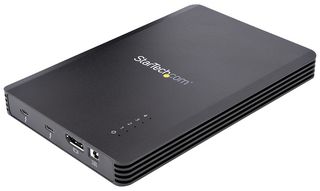

M2E4BTB3

The M2E4BTB3 from Startech is a unique enclosure designed to create a high performance storage solution that utilises the full bandwidth available from a Thunderbolt 3 port, providing transfer speeds up to 40Gb/s. The enclosure allows you to access four M.2 NVMe or AHCI 2280 SSD drives with dedicated PCI-Ex lanes to ensure consistent performance for each drive. The enclosure also features a 4K capable DisplayPort output and downstream Thunderbolt 3 port for daisy-chaining additional devices.

• Thunderbolt 3 interface with transfer speeds up to 40Gb/s
• Dedicated 8Gb/s PCI-Ex lane for each connected drive
• Supports software RAID with storage management systems
• Integrated DisplayPort output, connect a 4K monitor to your computer through the enclosure
• Downstream Thunderbolt 3 port allows you to daisy chain additional devices
• Powered by 72W EPS power supply that provides up to 15W power to downstream Thunderbolt 3 devices
• Vented metal enclosure with thermal pads and integrated cooling fan
• Supplied with certified Thunderbolt 3 host cable (0.7m)
• Supports Thunderbolt 4 hosts devices (at Thunderbolt 3 performance)
• Dimensions (HxWxD): 20x120x160mm
• 2 Year manufacturer warranty

İçindekiler

Enclosure, Thunderbolt 3 cable, AC adaptor (UK/EU/NA/AU) and user guide

Uyarılar

Note: Not compatible with SATA M.2 SSD drives. Enclosure is not compatible with Thunderbolt 1/2 host devices. Apple Mac computers with M1 processors only support one external display through the enclosure. Apple Macs with Intel or M1 Max/Pro can support dual displays.

Notlar

Note: Only supports 80mm (2280) M.2 NVMe SSDs. Downstream connected TB3 devices share bandwidth with connected SSDs and may reduce data transfer performance.
