3S1PLS33600FLC.

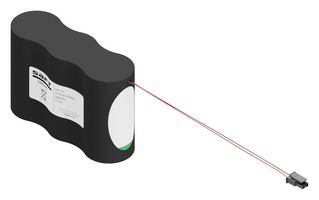

3S1PLS33600FLC is a 10.8V primary lithium-thionyl chloride (Li-SOCI2) battery. It is designed to meet all major quality, safety and environment standards like transport: UN3090, quality: ISO 9001, Saft world-class, continuous program, environment: ISO 14001. It features hermetic spiral cell construction with glass to metal Seal, non-flammable electrolyte, built-in safety vent, and stainless steel body. Typical applications are tracking systems and data loggers.

• High voltage response, stable during most of the lifetime of the application
• High drain and pulse capability
• Low self-discharge rate (less than 1% after 1 year storage at +20°C)
• Fully customisable for cables, connectors
• Restricted for transport (Class 9)
• Typical capacity (at 15mA, +20°C, 6.0V cut-off) is 17.0Ah
• Nominal voltage (at 2mA +20°C) is 10.8V
• Operating temperature range from -60°C to +85°C
• Approximate dimensions are 100mm length x 65mm height x 34mm width
• Maximum continuous discharge current (typical) is 250mA
