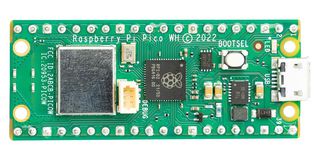

RASPBERRY PI PICO WH

The Pico WH maintains the power and flexibility of the previous model, adding both wireless connectivity and pre-populated headers for greater integration into IoT applications. WiFi support is enabled via the integrated Infineon CYW43439 chip and contained in a metal shield can to reduce compliance costs. The Pico features flexible digital interfaces and can be easily programmed over USB using C/C++ or MicroPython, thanks to a comprehensive SDK with software examples and full documentation.

• Raspberry Pi designed RP2040 chipset
• Dual core ARM Cortex M0+ processor at up to 133MHz with variable core frequency
• Integrated Infineon CYW43439 chip with WPA3 and SoftAP (up to 4 clients)
• Supports 2.4GHz 802.11b/g/n wireless LAN connections
• 264kB SRAM & 2MB onboard flash memory
• 26 Multifunction GPIO pins (23x digital only, 3x ADC capable)
• 2x SPI, 2x I2C, 2x UART, 3x 12-bit ADC and 16x controllable PWM channels
• Accurate clock and timer on chip
• Temperature sensor
• Accelerated floating point libraries
• Micro USB port for power & data
• 3-pin JST-SH debug header
• Pre-soldered headers

Notlar

Note: Initially WiFi will be supported by MicroPython only with C/C++ support to come later. While the CYW43439 chip supports Bluetooth, this will not be supported on the Pico WH at launch.
