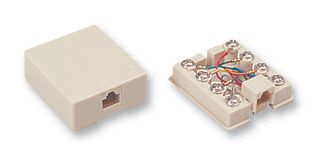

Resim yalnızca örnek vermeyi amaçlamaktadır. Lütfen ürün açıklamasına bakın.
60 Stoklarımızda
Daha fazlasına mı ihtiyacınız var?
500€ üzeri siparişler için ÜCRETSİZ Teslimat
15.00'dan önce siparişte standart teslimat
Miktar | |
---|---|
1+ | 3,370 € |
5+ | 2,820 € |
25+ | 2,430 € |
50+ | 2,250 € |
100+ | 2,090 € |
Fiyatı:Each
Minimum: 1
Birden fazla: 1
3,37 € (KDV Hariç)
Parça No. / Seri Notu Ekle
Yalnızca bu sipariş için Sipariş Onayınıza, Faturanıza ve İrsaliyenize eklenir.
Bu numara Sipariş Onayı, Fatura, İrsaliye, Web onay E-postası ve Ürün Etiketine eklenecektir.
Ürün Bilgileri
ÜreticiTUK
Üretici Parça No.JSP
Sipariş Kodu454485
Teknik Bilgi Formu
Modular Connector TypeRJ45 Jack
Port Configuration1 x 1 (Port)
GenderJack
No. of Contacts8Contacts
No. of Positions / Loaded Contacts (per Port)8P8C
LAN Category-
No. of Positions8Ways
IP Rating-
Connector MountingPanel Mount
Connector OrientationVertical
No. of Ports1Ports
Contact Termination TypeScrew
ShieldingUnshielded
Contact PlatingGold Plated Contacts
MagneticsWithout Magnetics
LEDsWithout LED
Contact MaterialPhosphor Bronze
Light PipesWithout Light Pipe
Product Range-
SVHCNo SVHC (14-Jun-2023)
Ürün Genel Bakış
The JSP is a 8P8C Surface Socket with hard gold over nickel plated phosphorous bronze alloy contacts and PVC insulation. This female connector has screw termination and accepts 26AWG wire gauge. Unit is suitable for round or flat cable entry. Screw terminations accepts 3 to 3.5mm spade terminals or bare wire. Socket is also provided with 2 22mm #6 wood screws for mounting the base unit.
- 1.5A Rated current
- 20mΩ Maximum contact resistance
- <gt/>10MΩ Insulation resistance
- Pro Signal products are rated 4.2 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
Uygulamalar
Communications & Networking
Teknik Özellikler
Modular Connector Type
RJ45 Jack
Gender
Jack
No. of Positions / Loaded Contacts (per Port)
8P8C
No. of Positions
8Ways
Connector Mounting
Panel Mount
No. of Ports
1Ports
Shielding
Unshielded
Magnetics
Without Magnetics
Contact Material
Phosphor Bronze
Product Range
-
Port Configuration
1 x 1 (Port)
No. of Contacts
8Contacts
LAN Category
-
IP Rating
-
Connector Orientation
Vertical
Contact Termination Type
Screw
Contact Plating
Gold Plated Contacts
LEDs
Without LED
Light Pipes
Without Light Pipe
SVHC
No SVHC (14-Jun-2023)
Teknik Belgeler (1)
JSP için alternatifler
1 Ürün Bulundu
İlgili Ürünler
1 Ürün Bulundu
Mevzuat ve Çevre
Menşe Ülke:
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:China
En son önemli imalat işleminin gerçekleştirildiği ülke
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:China
En son önemli imalat işleminin gerçekleştirildiği ülke
Fiyat Listesi No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Uyumlu:Evet
RoHS
RoHS Ftalatlar Uyumlu:Evet
RoHS
SVHC:No SVHC (14-Jun-2023)
Ürün Uyumluluk Belgesini İndirin
Ürün Uyumluluk Belgesi
Ağırlık (kg):.038
