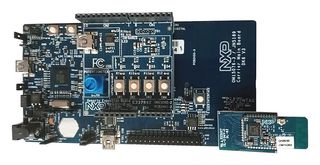

QN9090-DK006

QN9090-DK006 is a development platform for QN9090/30(T) wireless MCUs. The QN9090 development platform comes with an integrated programmer and debugger along with suite of example applications showcasing standard GATT profiles in a complete software development kit (SDK). It is designed to make it as easy as possible to get started with project based on NXP® QN9090/30 (T) Bluetooth Low Energy SOC with optional NFC technology. Target applications include blood glucose management. building security, wristband, inventory and supply chain management, home control panel, toys and board games.

• QN9090/30(T) Bluetooth Low Energy MCU with Arm®Cortex®-M4 CPU
• Module site for QN9090 (T) Bluetooth LE 5.0 MCU with NFC NTAG
• PCB antenna for NFC tag
• On-board, high-speed USB based, Link2 debug probe with ARM’s CMSIS-DAP and SEGGER J-Link
• Expansion options based on Arduino R3 plus additional expansion port pins
• Power, reset, ISP and UART Tx/Rx status LEDs
• Target reset and user buttons
• On-board 3.3V from USB port, 4xAAA batteries, 2xAAA batteries or external power supply option
• Built-in power consumption measurement
• 8Mb Macronix MX25R QSPI flash

İçindekiler

Mother board (OM15076), Generic daughter card (OM15082), Module with mezzanine (QN9090-001-T10).

Uyarılar

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
