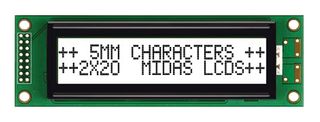

MC22005A6W-FPTLW

• Alphanumeric / character LCD module
• 2 lines of 20 characters - 2 x 20 also referred to as 20 x 2
• Positive mode FSTN material
• Appearance - black characters on white background
• Transflective technology, generally for indoor and outdoor applications
• Chip on board construction (COB) for easy mounting
• On board controller SPLC780 or equivalent (HD44780 derivative)
• English/Japanese font sets
• 5V logic supply, standard parallel interface
• Display duty 1/16, Driving bias 1/5
• White LED backlight
• Preferred view angle - 6 o'clock
• -20 to +70°C wide operating temperature range
• 16 way through hole DIL (side, left, 2x8) connection, 2.54mm pitch
• Overall max dimensions - 116.0 x 37.0 x 13.5mm
• Viewing area - 83.0 x 18.6mm
• 5mm character (actual dimension 3.20 x 5.95mm)

Uygulamalar

Industrial, Imaging, Video & Vision
