DS28E50EVKIT#

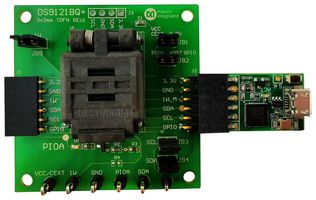

DS28E50 evaluation system (EV system) provides the hardware and software necessary to exercise the features of the DS28E50. The EV system consists of five DS28E50 devices in a 6 pin TDFN package, a DS9121BQ+ evaluation TDFN socket board and a DS9481P-300# USB to I2C/1-Wire® adapter. The evaluation software runs under Windows® 10 and Windows 7 operating systems. It provides a handy user interface to exercise the features of the DS28E50. It is suitable for authentication of medical sensors and tools, IoT node authentication, peripheral authentication, printer cartridge identification and authentication, reference design license management.

• Demonstrates the features of the DS28E50 DeepCover® SHA3 1-wire authenticator
• 1-wire communication is logged to aid firmware designers understanding of DS28E50
• 1-Wire/I2C USB adapter creates a virtual COM port on any PC
• Fully compliant with USB specification v2.0
• Software runs on Windows 10 and Windows 7
• Convenient on-board test points, TDFN socket
