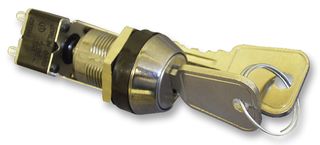

MSL8602B

The MSL8602B is a SPDT Lock Switch with bracketed MS module and a built-in anti-pick system 8 disc lock. It has silver cadmium oxide contacts, G.F polyamide 6.6 switch chamber, chromium-plated bright zinc alloy lock housing and nickel-plated mild steel keys. This 90° steps lock movement switch has two part construction. The lock is inserted into the panel from the front. The mains switch module either bracketed, from the rear of the panel.

• UL94V-0 Flammability rating
• <gt/>999MΩ at 500VDC Initial insulation resistance
• <lt/>20Ωm Initial contact resistance
• -25 to 85°C Operating temperature range

Uygulamalar

Industrial
