ZSC31050KITV3P1

Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSC31050 Sensor Signal Conditioner (SSC) IC. The user's PC can communicate with the ZSC31050 IC socketed on the ZSC31050 SSC Evaluation-board via the SSC communication board through a USB connection. The Evaluation-board can connect to the user's sensor or to the SSC Sensor Replacement Board (SRB). The SRB provides a replacement for an actual sensor and can be used for the first step of calibration or a dry-run calibration. On the SRB the simulated resistive sensor signal is controlled by a potentiometer. The kit also includes the small unpopulated test board for facilitating user prototypes.

İçindekiler

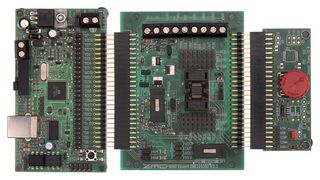

ZSC31050 SSC Evaluation-board, SSC communication board, SSC sensor replacement board, 5 ZSC31050 samples, USB cable.
