KTK-R-15

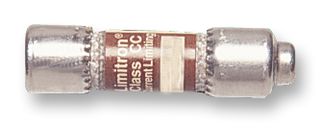

Fuse, Industrial / Power, LIMITRON KTK-R, 15 A, 600 V, 10.3mm x 38.1mm, 0.41" x 1.5"
Daha fazlasına mı ihtiyacınız var?
| Miktar | |
|---|---|
| 1+ | 27,690 € |
| 5+ | 25,750 € |
| 10+ | 24,700 € |
| 20+ | 23,650 € |
| 50+ | 22,600 € |
Ürün Bilgileri
Ürün Genel Bakış
The KTK-R-15 is a LIMITRON™ KTK-R-series 15A 600VAC advanced protection class-CC current-limiting, fast-acting Fuse with melamine body. This fuse provides 10X better current limitation to help prevent equipment damage caused by short-circuit events, 200kA interrupting rating complies with NEC® section 110.9 for today's large capacity systems, fast-acting fuse helps prevent equipment damage caused by short-circuit events, rejection type fuse fits both standard and rejection-style holders, it is ideal for critical industrial or commercial applications that have specific current limitation requirements.
- 200kA VAC RMS symmetrical Interrupting rating
Uygulamalar
Safety, Industrial, Commercial
Teknik Özellikler
LIMITRON KTK-R
600V
10.3mm x 38.1mm
Fast Acting
15A
-
0.41" x 1.5"
No SVHC (10-Jun-2022)
Teknik Belgeler (1)
KTK-R-15 için alternatifler
4 Ürün Bulundu
Mevzuat ve Çevre
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:Mexico
En son önemli imalat işleminin gerçekleştirildiği ülke
RoHS
RoHS
Ürün Uyumluluk Belgesi
