DS28E18EVKIT#

DS28E18EVKIT# is a DS28E18 evaluation system (EV system) that provides the special hardware and software system to exercise the features of the DS28E18 1-Wire®-to-I2C/SPI bridge with command sequencer IC. The EV system consists of a DS28E18 EV kit board, a DS7505 peripheral module board, a MAX31722 peripheral module board, and a DS9481P-300# USB-to-1-Wire adapter for PC connectivity. The EV kit is compatible with Windows® operating systems.

• Driver support for Windows 10/8/7
• Fully compliant with USB 2.0 specification
• USB powered with no external power supply required
• Extended SPI/I2C peripheral module connector for rapid prototyping of SPI/I2C servers

İçindekiler

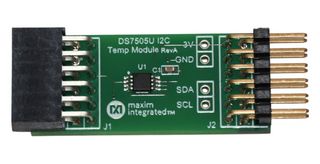

DS28E18 EV kit board, DS9481P-300# USB-to-1-Wire adapter, MAX31722 PMOD board and DS7505 PMOD board.

Notlar

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
