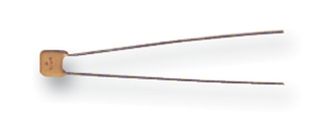

K473K20X7RH53L2

The Vishay K series are radial leaded, multilayer ceramic chip capacitor with class 2, X7R dielectric used for general purpose applications. The capacitance value ranges from 100pF to 1μF. These capacitors are used in temperature compensation, coupling and decoupling circuits.

• ±5%, ±10%, ±20% and + 80%/- 20% tolerance
• Rated voltage of 50VDC, 100VDC, 200VDC, 500VDC
• Operating temperature range -55°C to + 125°C
• High capacitance with small size
• High reliability
• EIA 198, IEC 60384-9 approvals
• Straight or kinked leads having a lead spacing of 2.5mm and 5.0mm
• Flame retardant epoxy resin
• Climatic category according to EN 60058-1 55/125/21

Uygulamalar

Industrial, Consumer Electronics, Portable Devices, Power Management
