268308C

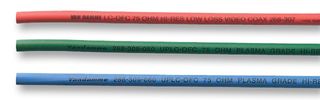

The 268308C is a standard plasma grade video Coaxial Cable with bare ultra pure oxygen-free copper conductor and a polyethylene dielectric. This RG59 high-resolution coaxial cable comes with a green flexible PVC jacket and bare oxygen-free braided copper wire screen (95% coverage). It is designed for use with analogue video signals. Precision performance is combined with flexibility usually only found in microphone cables resulting in an excellent video cable for dynamic use in the broadcast, video and presentation markets. It can be used with serial digital video transmissions up to 138m. It is also suitable for SP Dif digital audio and word clock.

• CPR: Not Yet Qualified
• 85Ω/km Conductor resistance
• 13Ω/km Shield resistance
• <gt/>5000MΩ/km Insulation resistance
• 7000VDC (1 minute OK) Voltage test
• 67pF/m Capacitance
• 66% Velocity of propagation

Uygulamalar

Signal Processing, Audio
