76-107

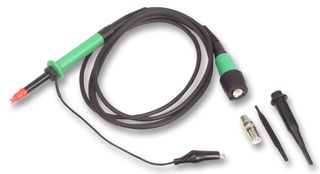

The 76-107 is a Passive Oscilloscope Probe with 4mm banana plug to 4mm banana plug connection. It features a readout actuator pin (sense pin) on the BNC connector. This high performance family is a high quality, offers general purpose set of 5mm passive voltage oscilloscope probe. It is excellent replacement probe for all makes and models of oscilloscopes.

• Snap-locking sprung hook
• Easily replaceable tip
• Large accessory set
• Meets IEC 61010-031
• 250MHz Bandwidth
• 10x Fixed Attenuation
• 10MΩ Input impedance
• 14pF Input capacitance
• 1MΩ Output impedance
• 1.4ns Raise time
• 300V CAT II IEC rating
• 12 month limited warranty *view Terms & Conditions for details

Uygulamalar

Test & Measurement

İçindekiler

Oscilloscope probe, 5cm Ground lead, Replacement tip, Black snap-on sprung hook, Tip insulator, IC tip, BNC adapter, Probe tip ground, Trimmer tool and Identifier rings.
