2213800-1
Wire Splice, IPX8, CoolSplice, IDC / IDT, 18 AWG, 18 AWG, 0.75 mm², Wire Splice
Daha fazlasına mı ihtiyacınız var?
| Miktar | |
|---|---|
| 1+ | 2,190 € |
| 10+ | 1,550 € |
| 100+ | 1,410 € |
| 250+ | 1,320 € |
| 500+ | 1,230 € |
| 1000+ | 1,220 € |
Ürün Bilgileri
Ürün Genel Bakış

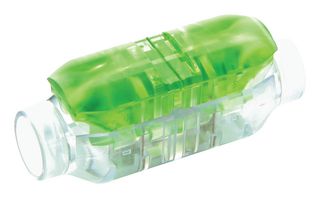

The CoolSplice connector range from TE Connectivity was designed for easy field installation. The CoolSplice Series allows for push button termination using a common pair of pliers. Both wires are terminated independently for ease of use and this feature allows for factory pre-termination of one wire and field termination of the second during installation. The Key benefits are enable a waterproof solution with an IP rated splice and save installation time and eliminate the need to pre-strip wires with insulation displacement technology (IDC). Typical applications include outdoor lighting, indoor lighting fixtures and wiring harness field repairs.
- Simple push button termination
- Reliable and proven insulation displacement technology
- CoolSplice operating temperature between -40°C and 105°C
- Left/right side independent terminations
- Slim-symmetrical glossy appearance
- Visually controlled termination
Uygulamalar
Industrial, Lighting, Maintenance & Repair, Security
Teknik Özellikler
CoolSplice
18AWG
0.75mm²
Green
Phosphor Bronze
IDC / IDT
18AWG
Wire Splice
PC (Polycarbonate)
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (21-Jan-2025)
Teknik Belgeler (3)
2213800-1 için alternatifler
1 Ürün Bulundu
Mevzuat ve Çevre
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:Austria
En son önemli imalat işleminin gerçekleştirildiği ülke
RoHS
RoHS
Ürün Uyumluluk Belgesi
