9200

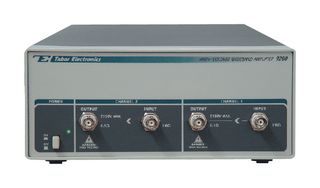

9200 is a dual channel, 2U, half-rack size, bench-top power amplifier designed for signal amplification. With unprecedented signal purity, Model 9200 amplifies signals from DC to over 500KHz. The unit has a fixed gain of x15 however the same amplifier is available with custom gain and no signal purity or performance degradation.

• High voltage output to 300Vp-p (±150V)
• Output current to 100mA per channel
• Full power bandwidth from DC to <gt/>500KHz
• Slew rate to 200V/µs
• Low distortion
• Custom configuration of gain and signal ground
• Dimension with feet is 315 x 102 x 395mm (WxHxD)
• Operating temperature range from 0°C to 50°C
• 3 year warranty

Notlar

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
