Sayfayı Yazdır

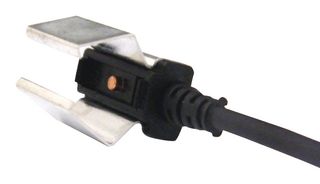

Resim yalnızca örnek vermeyi amaçlamaktadır. Lütfen ürün açıklamasına bakın.
ÜreticiTE CONNECTIVITY
Üretici Parça No.GA10K3D1303
Sipariş Kodu2990333
Diğer AdıylaGA10K3D1303
Teknik Bilgi Formu
74 Stoklarımızda
Daha fazlasına mı ihtiyacınız var?
500€ üzeri siparişler için ÜCRETSİZ Teslimat
15.00'dan önce siparişte standart teslimat
Miktar | |
---|---|
1+ | 35,540 € |
5+ | 23,140 € |
10+ | 20,920 € |
25+ | 19,080 € |
50+ | 17,540 € |
Fiyatı:Each
Minimum: 1
Birden fazla: 1
35,54 € (KDV Hariç)
Parça No. / Seri Notu Ekle
Yalnızca bu sipariş için Sipariş Onayınıza, Faturanıza ve İrsaliyenize eklenir.
Bu numara Sipariş Onayı, Fatura, İrsaliye, Web onay E-postası ve Ürün Etiketine eklenecektir.
Ürün Bilgileri
ÜreticiTE CONNECTIVITY
Üretici Parça No.GA10K3D1303
Sipariş Kodu2990333
Diğer AdıylaGA10K3D1303
Teknik Bilgi Formu
Thermistor TypeProbe
Resistance (25°C)10kohm
Thermistor MountingClip On Pipe
Resistance Tolerance (25°C)± 1%
Product Range-
NTC MountingClip On
B-Constant3435K
Thermistor TerminalsWire Leaded
B-Constant Tolerance± 2%
NTC Case Size-
Thermal Time Constant (in Air)-
Probe MaterialCopper
Probe Diameter-
Lead Length-
Operating Temperature Min-40°C
Operating Temperature Max125°C
Qualification-
SVHCTo Be Advised
Ürün Genel Bakış
GA10K3D1303 is a fast-time response NTC pipe probe. This probe consists of an NTC thermistor soldered to a 24AWG stranded TPE cable and potted in copper housing. The assembly is over moulded leaving the copper housing exposed for fast time response. A metal clip is supplied with the assembly for easy attachment. Applications include pipe clamp surface monitoring, heating and air conditioning, hot water appliances, and electric shower.
- Fast response time, robust, compact design
- Improved overall reliability, integrated clip (0.5 inch pipe)
- 22AWG stranded insulated leads (wire/cladding type)
- Open end electrical connection, 3435K β-value
- 119 in wire length, 10Kohm resistance (at 25°C)
- ±1% tolerance resistance, 2.0mW/°C dissipation constant
- <5s time response (63.2% of temperature span) in liquid
- 100Mohm at 500VDC insulation resistance, zinc plated ½” carbon steel pipe clip
- 24 stranded (7/32) SPC with black TPE insulation, closed tube copper housing probe head
- Operating temperature range from -25 to 85°C
Teknik Özellikler
Thermistor Type
Probe
Thermistor Mounting
Clip On Pipe
Product Range
-
B-Constant
3435K
B-Constant Tolerance
± 2%
Thermal Time Constant (in Air)
-
Probe Diameter
-
Operating Temperature Min
-40°C
Qualification
-
Resistance (25°C)
10kohm
Resistance Tolerance (25°C)
± 1%
NTC Mounting
Clip On
Thermistor Terminals
Wire Leaded
NTC Case Size
-
Probe Material
Copper
Lead Length
-
Operating Temperature Max
125°C
SVHC
To Be Advised
Teknik Belgeler (1)
Mevzuat ve Çevre
Menşe Ülke:
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:China
En son önemli imalat işleminin gerçekleştirildiği ülke
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:China
En son önemli imalat işleminin gerçekleştirildiği ülke
Fiyat Listesi No:90251900
US ECCN:EAR99
EU ECCN:NLR
RoHS Uyumlu:Evet
RoHS
RoHS Ftalatlar Uyumlu:Evet
RoHS
SVHC:To Be Advised
Ürün Uyumluluk Belgesini İndirin
Ürün Uyumluluk Belgesi
Ağırlık (kg):.1
