782252-01

782252-01 is an USB-6343 multifunction I/O device. It offers analogue I/O, digital I/O, and four 32-bit counters/timers for PWM, encoder, frequency, event counting, and more. On-board NI-STC3 timing and synchronisation technology delivers advanced timing functionality, including independent analogue and digital timing engines and retriggerable measurement tasks. The USB-6343 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.

• 32 single ended analogue input channel (16bit analogue resolution, 500kS/s maximum sample rate)
• 4 analogue output channel (900kS/s maximum update rate), 48 digital input/output channel
• 2047 samples analogue input FIFO buffer size
• 2190μV analogue input absolute accuracy
• Simultaneous sampling

Notlar

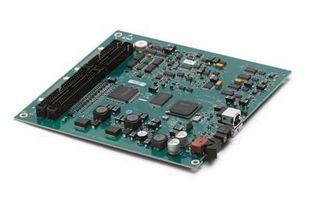

Board only.
