MP720105

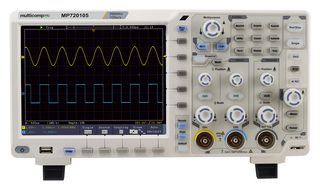

The MP720105 from Multicomp Pro is a 200MHz, 2-channel digital storage oscilloscope, featuring 1GS/s sampling rates, 8-bits vertical resolution, an 8" colour LCD screen, and decoding kit (RS232, SPI, I2C, CAN trigger/decode).

• Ultra-thin design, less space accommodation
• Multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX
• 8" 800x600 high resolution colour LCD screen
• 40M record length
• 8-bits vertical resolution ADC
• Max 75,000 wfms/s waveform refresh rate
• Low background noise, vertical sensitivity 1mV/div - 10V/div
• Multi-trigger and bus decoding function
• SCPI and LabVIEW supported
• 1ns/div - 1000 horizontal scale (s/div), step by 1-2-5
• DC, AC and GND input coupling
• Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
• Auto, normal and single trigger modes
• Dimensions (W x H x D) – 340 x 177 x 90mm
• Device Weight - 2.6kg

İçindekiler

Digital Storage Oscilloscope, EU & UK Mains Leads, 2x Probes, Probe Adjust Tool, USB Cable, Operating Instructions, CD-ROM

Notlar

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
