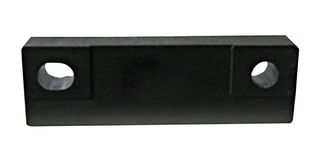

MP-MSM-332

MP-MSM-332 is a flat matching magnet for use with MP-MS-332-3-1-0500 reed sensor. This reed sensor magnet plays a crucial role in the operation of reed sensors, providing a reliable and cost-effective solution for magnetic sensing applications. It's compact size, robust construction, and versatility make it suitable for a wide range of industrial, commercial, and consumer applications.

• ABS, black housing material, epoxy, black potting material
• Over housing length orientation, N30H magnetic material
• 1105mT remanence Br, 836kA/m coercivity HcB
• 1274kA/m coercivity HcJ, 235kJ/m³ maximum energy product (BH)
• 4.1 x10⁵ Vs cm magnetic moment M
• Temperature coefficient Tk (Br) is -0.11%/°C
• Operating temperature range from -20 to 85°C

Uygulamalar

Industrial, Automation & Process Control, Automotive, Installations

İçindekiler

x1 Flatpack magnet.

Notlar

Versatile and cost-effective solution for a variety of applications.
