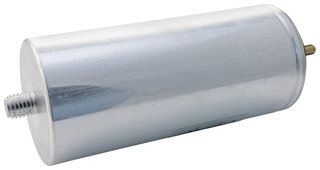

C44AHGP5700ZA0J

The C44A series are aluminium case general purpose chassis mount metalized polypropylene film capacitors. These capacitors are approved by VDE 0560, IEC 071 and EN 61071 standards. They also have IEC climatic category (40/85/21) and IP00 degree of protection.

• Capacitance value ranges from 1µF to 330µF
• Available in 400VDC, 600VDC, 700VDC, 850VDC, 1200VDC and 1500VDC rated voltages
• ±5% and ±10% tolerance values
• Life expectancy of ≥ 30000hours at URMS and ≥ 100.000 hours at Un
• Tinned brass fastons or screws
• Rated insulation voltage (Ui) of 700V at 50Hz (insulation group B ( VDE 0110 part 1))
• Maximum permissible ambient temperature of 70°C

Uygulamalar

Power Management, Industrial, Consumer Electronics, Portable Devices

Notlar

This product is part of the Farnell extended range program and inventory is held at our partner's warehouse facilities. Where inventory is shown your goods will arrive between 6 and 9 days. Unfortunately it is not possible to accept returns and all orders are NCNR (Non-Cancellable-Non-Returnable).
