Reed Switches & Magnetic Switches

Farnell Türkiye'da çok çeşitli Reed Switches & Magnetic Switches bulun. Dünyanın önde gelen üreticilerinin yeni ve en popüler ürünlerini de içeren geniş bir Reed Switches & Magnetic Switches yelpazesini stoklarımızda bulunduruyoruz: Standexmeder, Littelfuse, Comus, Coto Technology & George Risk Industries.

Üretici

Sensing Range Max

Product Range

Contact Configuration

Sensing Distance Max

Switch Mounting

Sensor Mounting

Contact Current Max

Supply Current

Operating Temperature Min

Switching Voltage Max

Switching Power Max

Operating Temperature Max

Contact Resistance Max

Operate AT Min

Operate AT Max

Paketleme

Hiçbir Filtre Uygulanmadı

0 Seçilen Filtre(ler)

			Fiyatı		Miktar

8602-0551-020	2409192 Data Sheet RoHS	COMUS Reed Switch SPDT Through Hole 200 mA 30 V 3 W	Each	1+ 7,390 € 5+ 5,080 € 10+ 4,930 € 20+ 4,150 € 50+ 3,640 €	Min: 1 / Çoklu: 1	-	-	SPDT	-	Through Hole	-	200mA	-	-	30V	3W	-	0.1ohm	-	-
MATE-12B-17-23	4336005 Data Sheet RoHS	LITTELFUSE Reed Switch Subminiature MATE-12B Series SPST-NO Through Hole 500 mA 200 VDC 10 W	Each	1+ 1,280 € 10+ 1,120 € 25+ 1,060 € 50+ 1,020 € 100+ 0,971 €	Min: 1 / Çoklu: 1	-	MATE-12B Series	SPST-NO	-	Through Hole	-	500mA	-	-	200VDC	10W	-	0.1ohm	17AT	23AT
MATE-12B-12-18	4336004 Data Sheet RoHS	LITTELFUSE Reed Switch Subminiature MATE-12B Series SPST-NO Through Hole 500 mA 200 VDC 10 W	Each	1+ 1,290 € 10+ 1,120 € 25+ 1,060 € 50+ 1,020 € 100+ 0,976 €	Min: 1 / Çoklu: 1	-	MATE-12B Series	SPST-NO	-	Through Hole	-	500mA	-	-	200VDC	10W	-	0.1ohm	12AT	18AT
CT10-1530-G1	1081696 Data Sheet RoHS	COTO TECHNOLOGY Reed Switch CT10 SPST-NO Surface Mount 500 mA 200 VDC 10 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 4,430 € 10+ 2,210 € 25+ 1,880 € 50+ 1,730 € 100+ 1,700 €	Min: 1 / Çoklu: 1	-	CT10	SPST-NO	-	Surface Mount	-	500mA	-	-	200VDC	10W	-	0.2ohm	15AT	30AT
KSK-1A80-1020	1079470 Data Sheet RoHS	STANDEXMEDER Reed Switch KSK-1A80 SPST-NO 500 mA 170 V 10 W	Each	1+ 3,980 € 10+ 1,990 € 25+ 1,690 € 50+ 1,550 € 100+ 1,520 €	Min: 1 / Çoklu: 1	-	KSK-1A80	SPST-NO	-	-	-	500mA	-	-	170V	10W	-	0.25ohm	10AT	20AT
RI-70GP0715	1081702 Data Sheet RoHS	COMUS Reed Switch RI-70 SPST-NO 500 mA 170 V 10 W	Each	1+ 4,200 € 10+ 2,100 € 25+ 1,780 € 50+ 1,640 € 100+ 1,610 €	Min: 1 / Çoklu: 1	-	RI-70	SPST-NO	-	-	-	500mA	-	-	170V	10W	-	0.15ohm	7AT	15AT
CT05-1535-G1	1608059 Data Sheet RoHS	COTO TECHNOLOGY Reed Switch CT05 SPST-NO Surface Mount 500 mA 140 VDC 5 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 10,360 € 5+ 7,130 € 10+ 6,910 € 20+ 6,340 € 50+ 5,560 €	Min: 1 / Çoklu: 1	-	CT05	SPST-NO	-	Surface Mount	-	500mA	-	-	140VDC	5W	-	0.16ohm	15AT	35AT
RI-80SMD0515-G1	1081703 Data Sheet RoHS	COMUS Reed Switch RI-80 SMD SPST-NO Surface Mount 350 mA 175 V 5 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 6,600 € 10+ 3,710 € 25+ 3,300 € 50+ 3,100 € 100+ 2,900 €	Min: 1 / Çoklu: 1	-	RI-80 SMD	SPST-NO	-	Surface Mount	-	350mA	-	-	175V	5W	-	0.16ohm	5AT	15AT
RI-80SMD0515-G2	1081704 Data Sheet RoHS	COMUS Reed Switch RI-80 SMD SPST-NO Surface Mount 350 mA 175 V 5 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 5,450 € 10+ 3,060 € 25+ 2,980 € 50+ 2,730 € 100+ 2,400 €	Min: 1 / Çoklu: 1	-	RI-80 SMD	SPST-NO	-	Surface Mount	-	350mA	-	-	175V	5W	-	0.16ohm	5AT	15AT
MDSR-4-22-38	2103636 Data Sheet RoHS	LITTELFUSE Reed Switch MDSR-4 Series SPST-NO Through Hole 500 mA 200 VDC 10 W	Each	1+ 1,190 € 10+ 1,050 € 25+ 0,989 € 50+ 0,949 € 100+ 0,908 €	Min: 1 / Çoklu: 1	-	MDSR-4 Series	SPST-NO	-	Through Hole	-	500mA	-	-	200VDC	10W	-	0.1ohm	22AT	38AT
KSK-1A46-1020	1447642 Data Sheet RoHS	STANDEXMEDER Reed Switch SPST-NO 1 A 200 V 10 W	Each	1+ 4,090 € 10+ 2,040 € 25+ 1,740 € 50+ 1,590 € 100+ 1,560 €	Min: 1 / Çoklu: 1	-	-	SPST-NO	-	-	-	1A	-	-	200VDC	10W	-	0.2ohm	10AT	20AT
MDSR-7-10-25	4332362 Data Sheet RoHS	LITTELFUSE Reed Switch MDSR-7 Series SPST-NO Through Hole 800 mA 200 VDC 10 W	Each	1+ 1,090 € 10+ 0,924 € 25+ 0,859 € 50+ 0,812 € 100+ 0,765 €	Min: 1 / Çoklu: 1	-	MDSR-7 Series	SPST-NO	-	Through Hole	-	800mA	-	-	200VDC	10W	-	0.1ohm	10AT	25AT
MK23-35-C-2	2453615 Data Sheet RoHS	STANDEXMEDER REED SWITCH SPST-NO 1A 200V SMD	Each (Supplied on Cut Tape) Kesik Bant	1+ 2,330 € 10+ 1,160 € 25+ 1,020 € 50+ 0,986 € 100+ 0,904 €	Min: 1 / Çoklu: 1	-	Standex Meder Electronics - MK23 Series - Reed Switches	SPST-NO	-	Surface Mount	-	1A	-	-	200VDC	20W	-	0.15ohm	15AT	20AT
RI-03A	2409213 Data Sheet RoHS	COMUS Reed Switch SPST-NO Through Hole 500 mA 200 VDC 10 W	Each	1+ 3,090 € 10+ 1,100 € 25+ 0,966 € 50+ 0,936 € 100+ 0,859 €	Min: 1 / Çoklu: 1	-	-	SPST-NO	-	Through Hole	-	500mA	-	-	200VDC	10W	-	0.12ohm	18AT	32AT
MK23-66-C-2	2453621 Data Sheet RoHS	STANDEXMEDER Reed Switch SMD SPST-NO 200V 500mA 15AT - 20AT	Each (Supplied on Cut Tape) Kesik Bant	10+ 1,040 € 50+ 0,879 € 100+ 0,805 € 250+ 0,708 €	Min: 10 / Çoklu: 10	-	Standex Meder Electronics - MK23 Series - Reed Switches	SPST-NO	-	Surface Mount	-	500mA	-	-	200VDC	10W	-	0.15ohm	15AT	20AT
MK23-90-D-2	2453627 Data Sheet RoHS	STANDEXMEDER Reed Switch SPDT Surface Mount 500 mA 175 V 10 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 6,610 € 10+ 3,730 € 25+ 3,310 € 50+ 3,050 € 100+ 2,670 €	Min: 1 / Çoklu: 1	-	-	SPDT	-	Surface Mount	-	500mA	-	-	175V	10W	-	0.15ohm	20AT	25AT
GC1917 80/120	2292953 Data Sheet RoHS	COMUS Reed Switch GC1917 SPDT Through Hole 1 A 400 V 60 VA	Each	1+ 10,580 € 5+ 8,980 € 10+ 8,230 € 20+ 7,410 € 50+ 6,590 €	Min: 1 / Çoklu: 1	-	GC1917	-	-	-	-	1A	-	-	400V	60VA	-	0.1ohm	80AT	120AT
MK23-46-D-2	2453619 Data Sheet RoHS	STANDEXMEDER Reed Switch SPST-NO Surface Mount 500 mA 200 V 10 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 2,980 € 10+ 1,490 € 25+ 1,300 € 50+ 1,160 € 100+ 1,070 €	Min: 1 / Çoklu: 1	-	-	SPST-NO	-	Surface Mount	-	500mA	-	-	200VDC	10W	-	0.15ohm	20AT	25AT
MK23-46-B-2	2453617 Data Sheet RoHS	STANDEXMEDER Reed Switch SPST-NO Surface Mount 500 mA 200 V 10 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 3,080 € 10+ 1,540 € 25+ 1,350 € 50+ 1,300 € 100+ 1,200 €	Min: 1 / Çoklu: 1	-	-	SPST-NO	-	Surface Mount	-	500mA	-	-	200VDC	10W	-	0.15ohm	10AT	15AT

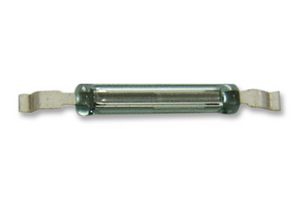

MK23-35-B-2	2453614 Data Sheet RoHS	STANDEXMEDER Reed Switch SPST-NO Surface Mount 1 A 200 V 20 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 2,330 € 10+ 1,160 € 25+ 1,020 € 50+ 0,986 € 100+ 0,904 €	Min: 1 / Çoklu: 1	-	-	SPST-NO	-	Surface Mount	-	1A	-	-	200VDC	20W	-	0.15ohm	10AT	15AT
59170-1-S-00-D	2774139 Data Sheet RoHS Date/Lot Code	LITTELFUSE Proximity Reed Sensor 7.5 mm SMD 500 mA -40°C to 125°C 59170 Series	Each (Supplied on Cut Tape) Kesik Bant	1+ 0,974 € 10+ 0,833 € 25+ 0,774 € 50+ 0,732 € 100+ 0,690 €	Min: 1 / Çoklu: 1	6.5mm	59170 Series	SPST-NO	6.5mm	Surface Mount	SMD	500mA	500mA	-40°C	200VDC	10W	125°C	0.1ohm	10AT	15AT
KSK-1A66-1520	2832626 Data Sheet RoHS	STANDEXMEDER Reed Switch KSK-1A66 SPST-NO Through Hole 500 mA 180 V 10 W	Each	10+ 1,130 € 50+ 0,776 € 100+ 0,753 € 250+ 0,690 €	Min: 10 / Çoklu: 10	-	KSK-1A66	SPST-NO	-	Through Hole	-	500mA	-	-	180V	10W	-	0.15ohm	15AT	20AT
KSK-1C90U-1520	2832634 Data Sheet RoHS	STANDEXMEDER Reed Switch KSK-1C90U SPDT-CO Through Hole 500 mA 175 V 10 W	Each	1+ 6,140 € 10+ 3,450 € 25+ 3,060 € 50+ 2,880 € 100+ 2,690 €	Min: 1 / Çoklu: 1	-	KSK-1C90U	SPDT-CO	-	Through Hole	-	500mA	-	-	175V	10W	-	0.15ohm	15AT	20AT
CT05-3050-G1	1081694 Data Sheet RoHS	COTO TECHNOLOGY Reed Switch SPST-NO Surface Mount 500 mA 140 VDC 5 W	Each (Supplied on Cut Tape) Kesik Bant	1+ 9,100 € 5+ 7,730 € 10+ 7,080 € 20+ 6,370 € 50+ 5,660 €	Min: 1 / Çoklu: 1	-	-	SPST-NO	-	Surface Mount	-	500mA	-	-	140VDC	5W	-	0.16ohm	30AT	50AT
DRS-DTH-50-80	4332349 Data Sheet RoHS	LITTELFUSE Reed Switch DRR-DTH SPDT-CO Through Hole 3 A 500 VDC 30 W	Each	1+ 13,440 € 5+ 12,570 € 10+ 11,700 € 20+ 11,060 € 50+ 10,150 €	Min: 1 / Çoklu: 1	-	DRR-DTH	SPDT-CO	-	Through Hole	-	3A	-	-	500VDC	30W	-	0.125ohm	50AT	80AT
