Charging Coils | Farnell Türkiye

Farnell Türkiye'da çok çeşitli Charging Coils bulun. Dünyanın önde gelen üreticilerinin yeni ve en popüler ürünlerini de içeren geniş bir Charging Coils yelpazesini stoklarımızda bulunduruyoruz: Wurth Elektronik, Tdk, Vishay, Abracon & Pulse Electronics.

Üretici

Product Range

Inductance

Inductance Tolerance

DC Resistance Max

No. of Coils

No. of Layers

Saturation Current (Isat)

Self Resonant Frequency

Quality Factor

AC Current Rating

Product Length

Product Width

Product Height

Inductor Mounting

Operating Temperature Min

Operating Temperature Max

Paketleme

Hiçbir Filtre Uygulanmadı

0 Seçilen Filtre(ler)

			Fiyatı		Miktar

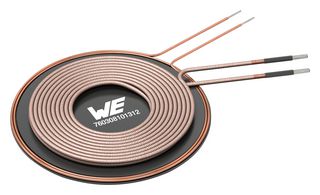

760308103102	2749145 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil WE-WPCC Series 10 µH ± 10% 0.055 ohm 1 Coil 1 Layer	Each	1+ 13,760 € 10+ 13,570 € 20+ 13,560 €	Min: 1 / Çoklu: 1	WE-WPCC Series	10µH	± 10%	0.055ohm	1 Coil	1 Layer	10A	11MHz	130@125kHz	-	53mm	53mm	4.5mm	Board Mount	-20°C	105°C
760308100141	2448596 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil Wireless WE-WPCC Series 10 µH ± 10% 0.03 ohm 1 Coil 1 Layer	Each	1+ 20,320 € 10+ 19,160 € 20+ 17,320 €	Min: 1 / Çoklu: 1	WE-WPCC Series	10µH	± 10%	0.03ohm	1 Coil	1 Layer	16A	11MHz	180@125kHz	-	-	-	6mm	Board Mount	-20°C	105°C
IWTX47R0EBEB240JF1	3364905 Data Sheet RoHS Date/Lot Code	VISHAY Charging Coil IWTX Series 24 µH ± 5% 0.075 ohm 1 Coil 1 Layer	Each	1+ 6,150 € 10+ 4,770 € 25+ 4,330 € 50+ 4,310 € 100+ 3,860 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	IWTX Series	24µH	± 5%	0.075ohm	1 Coil	1 Layer	20A	-	200@200kHz	6A	-	-	5.26mm	Board Mount	-40°C	105°C
IWAS3222CZEB190JF1	3364897 Data Sheet RoHS Date/Lot Code	VISHAY Charging Coil IWAS Series 19 µH ± 5% 0.357 ohm 1 Coil 1 Layer	Each	1+ 5,820 € 50+ 3,700 € 100+ 3,470 € 250+ 3,220 € 500+ 3,010 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	IWAS Series	19µH	± 5%	0.357ohm	1 Coil	1 Layer	2.4A	-	28.5@200kHz	-	22mm	32mm	3mm	Board Mount	-40°C	105°C
WR524830-16F3-NF-G	2790534 Data Sheet RoHS	TDK Charging Coil NFC Antenna Combo Rx WR-NFC Series 19.5 µH 0.8 ohm 1 Coil 1 Layer	Each	1+ 8,280 € 5+ 7,280 € 10+ 6,280 € 25+ 5,280 € 50+ 4,960 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	WR-NFC Series	19.5µH	-	0.8ohm	1 Coil	1 Layer	-	-	-	-	52.5mm	48.5mm	0.62mm	Board Mount	-30°C	70°C
146179-8021	2913968 Data Sheet RoHS	MOLEX Charging Coil PowerLife 146179 Series 4 µH ± 2% 0.235 ohm 1 Coil 1 Layer	Each	1+ 10,440 € 10+ 8,100 € 20+ 7,700 €	Min: 1 / Çoklu: 1	PowerLife 146179 Series	4µH	± 2%	0.235ohm	1 Coil	1 Layer	-	-	115@6.78MHz	-	-	-	0.685mm	Board Mount	-	-
WR524825-17M6-NF-G	2790533 Data Sheet RoHS	TDK Charging Coil NFC Antenna Combo Rx WR-NFC Series 16.8 µH 0.75 ohm 1 Coil 1 Layer	Each	1+ 9,450 € 5+ 8,270 € 10+ 6,850 € 25+ 6,140 € 50+ 5,670 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	WR-NFC Series	16.8µH	-	0.75ohm	1 Coil	1 Layer	-	-	-	-	52.5mm	48.5mm	0.52mm	Board Mount	-30°C	70°C
WMRR138F-0	4695696 Data Sheet RoHS Date/Lot Code	PULSE ELECTRONICS Charging Coil 12.5 µH ± 10% 0.32 ohm 1 Coil 1 Layer	Each	1+ 2,620 € 5+ 2,360 € 10+ 2,140 € 20+ 1,910 € 40+ 1,750 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	-	12.5µH	± 10%	0.32ohm	1 Coil	1 Layer	-	-	-	-	38mm	32mm	0.9mm	Board Mount	-	-
760308101302	4360215 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil WE-WPCC Series 5.3 µH ± 10% 0.035 ohm 1 Coil 1 Layer	Each	1+ 20,350 € 10+ 19,750 € 20+ 19,150 €	Min: 1 / Çoklu: 1	WE-WPCC Series	5.3µH	± 10%	0.035ohm	1 Coil	1 Layer	10A	27MHz	-	8A	-	-	4.7mm	Board Mount	-20°C	105°C
SZ3035N	4695692 Data Sheet RoHS Date/Lot Code	PULSE ELECTRONICS Charging Coil 58mm Dia 7.42 µH ± 10% 0.07 ohm 1 Coil 1 Layer	Each	1+ 12,600 € 5+ 10,680 € 10+ 10,020 € 20+ 9,450 € 40+ 8,850 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	-	7.42µH	± 10%	0.07ohm	1 Coil	1 Layer	-	-	77@360kHz	-	-	-	4.3mm	Board Mount	-40°C	85°C
SZ3105N	4695694 Data Sheet RoHS Date/Lot Code	PULSE ELECTRONICS Charging Coil 49.5mm Dia 6.3 µH ± 10% 0.045 ohm 1 Coil 1 Layer	Each	1+ 2,930 € 5+ 2,710 € 10+ 2,510 € 20+ 2,300 € 40+ 2,150 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	-	6.3µH	± 10%	0.045ohm	1 Coil	1 Layer	-	-	-	-	-	-	2.85mm	Board Mount	-40°C	85°C
760308102142	4360216 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil WE-WPCC Series 5.8 µH ± 10% 0.012 ohm 1 Coil 1 Layer	Each	1+ 20,400 € 10+ 19,840 € 20+ 19,440 €	Min: 1 / Çoklu: 1	WE-WPCC Series	5.8µH	± 10%	0.012ohm	1 Coil	1 Layer	30A	12MHz	-	18A	-	-	6.5mm	Board Mount	-20°C	105°C
WMRT149A-1	4695695 Data Sheet RoHS Date/Lot Code	PULSE ELECTRONICS Charging Coil 50mm Dia 6.9 µH ± 10% 0.047 ohm 1 Coil 1 Layer	Each	1+ 1,570 € 5+ 1,450 € 10+ 1,330 € 20+ 1,280 € 40+ 1,220 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	-	6.9µH	± 10%	0.047ohm	1 Coil	1 Layer	-	-	70@100kHz	-	-	-	3.5mm	Board Mount	-	-
SZ3085N	4695693 Data Sheet RoHS Date/Lot Code	PULSE ELECTRONICS Charging Coil 12.5 µH ± 10% 0.06 ohm 3 Coils 1 Layer	Each	1+ 4,400 € 5+ 4,090 € 10+ 3,730 € 20+ 3,510 € 40+ 3,410 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	-	12.5µH	± 10%	0.06ohm	3 Coils	1 Layer	-	-	-	-	100mm	55mm	3.5mm	Board Mount	-40°C	105°C
760308102210	4360218 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil WE-WPCC Series 7.5 µH ± 10% 0.18 ohm 1 Coil 1 Layer	Each	1+ 11,070 € 10+ 10,980 € 20+ 10,760 €	Min: 1 / Çoklu: 1	WE-WPCC Series	7.5µH	± 10%	0.18ohm	1 Coil	1 Layer	-	22MHz	-	3A	37mm	37mm	1.8mm	Board Mount	-20°C	105°C
IWAS4832ABEB110JF1	3587972 Data Sheet RoHS	VISHAY WIRELESS CHARGING RECEIVE COIL 11UH 5%	Each (Supplied on Cut Tape) Kesik Bant	1080+ 2,840 €	Min: 1080 / Çoklu: 1080	IWAS Series	11µH	± 5%	0.187ohm	1 Coil	1 Layer	-	-	60@200kHz	-	32mm	48mm	1.7mm	Board Mount	-40°C	105°C
146179-4001	2913964 Data Sheet RoHS	MOLEX Charging Coil PowerLife 146179 Series 8.9 µH ± 2% 0.35 ohm 2 Coils 1 Layer	Each	1+ 11,230 € 10+ 8,830 €	Min: 1 / Çoklu: 1	PowerLife 146179 Series	8.9µH	± 2%	0.35ohm	2 Coils	1 Layer	-	-	25@200kHz	-	65.5mm	48.4mm	0.57mm	Board Mount	-	-
146179-0001	3862519 Data Sheet	MOLEX Charging Coil PowerLife 146179 Series 17.3 µH ± 2% 0.45 ohm 1 Coil 1 Layer	Each	5+ 4,600 €	Min: 5 / Çoklu: 5	PowerLife 146179 Series	17.3µH	± 2%	0.45ohm	1 Coil	1 Layer	-	-	-	-	43mm	50mm	0.63mm	Board Mount	-	-
IWAS4832ECEB160J50	2382397 Data Sheet RoHS	VISHAY CHARGING COIL 16.2UH 5%	Each	1+ 3,990 € 10+ 3,670 € 25+ 3,330 € 50+ 2,800 € 100+ 2,410 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	IWAS Series	16.2µH	± 5%	0.366ohm	1 Coil	1 Layer	-	-	30@200kHz	-	32mm	48mm	1.02mm	Board Mount	-	-
WCT38466-N0E0SST101	4125604 Data Sheet RoHS	TDK Charging Coil WCT Series 10.6 µH ± 0.5% 0.149 ohm 1 Coil 1 Layer	Each	1+ 34,420 € 5+ 25,900 € 10+ 24,310 € 25+ 22,570 € 50+ 21,070 €	Min: 1 / Çoklu: 1	WCT Series	10.6µH	± 0.5%	0.149ohm	1 Coil	1 Layer	-	-	-	-	67.01mm	85.14mm	-	Board Mount	-40°C	85°C
WR483265-15F5-G	2377527 Data Sheet RoHS Date/Lot Code	TDK Charging Coil Receiving Wireless WR Series 13.3 µH 0.2 ohm 1 Coil 1 Layer	Each	1+ 4,570 € 5+ 4,090 € 10+ 3,610 € 25+ 3,390 € 50+ 3,200 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	WR Series	13.3µH	-	0.2ohm	1 Coil	1 Layer	-	-	-	-	32.5mm	48.5mm	1.25mm	Board Mount	-30°C	70°C
760308101219	2543256 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil Wireless WE-WPCC Series 11.8 µH ± 10% 0.75 ohm 1 Coil 1 Layer	Each	1+ 7,700 € 3+ 7,560 € 5+ 7,430 € 10+ 7,290 € 20+ 6,720 € Daha Fazla Fiyatlandırma...	Min: 1 / Çoklu: 1	WE-WPCC Series	11.8µH	± 10%	0.75ohm	1 Coil	1 Layer	-	22MHz	13@125kHz	-	-	-	0.6mm	Board Mount	-20°C	105°C
760308101	2114371 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil Wireless WE-WPCC Series 24 µH ± 10% 0.1 ohm 1 Coil 1 Layer	Each	1+ 19,890 € 10+ 16,520 € 20+ 15,730 €	Min: 1 / Çoklu: 1	WE-WPCC Series	24µH	± 10%	0.1ohm	1 Coil	1 Layer	10A	6MHz	90@125kHz	-	53.3mm	53.3mm	6mm	Board Mount	-20°C	105°C
760308100110	2424068 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil Wireless WE-WPCC Series 24 µH ± 10% 0.1 ohm 1 Coil 1 Layer	Each	1+ 13,680 € 10+ 11,970 € 20+ 11,890 €	Min: 1 / Çoklu: 1	WE-WPCC Series	24µH	± 10%	0.1ohm	1 Coil	1 Layer	10A	5MHz	180@125kHz	-	-	-	6mm	Board Mount	-20°C	105°C
760308103305	2749147 Data Sheet RoHS Date/Lot Code	WURTH ELEKTRONIK Charging Coil WE-WPCC Series 8.8 µH ± 10% 0.22 ohm 2 Coils 1 Layer	Each	1+ 14,680 € 10+ 13,870 € 20+ 12,910 €	Min: 1 / Çoklu: 1	WE-WPCC Series	8.8µH	± 10%	0.22ohm	2 Coils	1 Layer	-	22MHz	30@125kHz	-	45mm	44mm	0.72mm	Board Mount	-20°C	105°C
