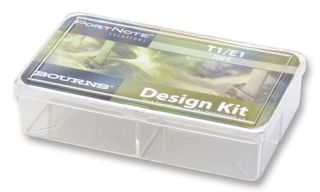

PN-DESIGNKIT-13

The PN-DESIGNKIT-13 is the Port Note design kit for T1/E1 telephony interface protection. The Port Note design kit is a selection of assorted circuit protection items conveniently packaged for easy access in a plastic box with bin guide. The Port Note solutions provide protection recommendations for typical port threats. Each Port Note solutions circuit protection design kit provides a simple, single page guide with essential information to provide an effective solution known to work in most typical applications. Information provided includes objectives, part numbers, compliance, schematics and much more. T1 and E1 are common telephony interfaces. This solution provides protection against surge and power contact.

• Compliance to ITU-T K.45 basic and ITU-T K.21 basic
• This solution provides protection without impairing the signal

Uygulamalar

Communications & Networking

İçindekiler

Two TISP7015L1 thyristors, Two B1250T fuses, Design guide.
