99 0972 100 02
Circular Connector, Circular Industrial, 710 Series, Cable Mount Receptacle, 2 Contacts
Daha fazlasına mı ihtiyacınız var?
| Miktar | |
|---|---|
| 1+ | 9,550 € |
| 10+ | 7,630 € |
| 100+ | 5,630 € |
| 250+ | 5,180 € |
| 500+ | 4,670 € |
| 1000+ | 4,580 € |
Ürün Bilgileri
Ürün Genel Bakış

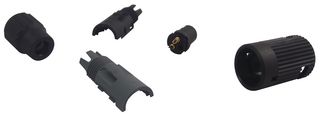

The 99 0972 100 02 is a 2-contact 125V/4A unshielded straight subminiature female Circular Connector with gold-plated bronze contacts, PA (UL94V-0) contact body and PA (UL 94HB) housing. The 678 series receptacle with Bayonet locking system, solder termination, cable mounting style. It accepts 24AWG (0.25mm²) wire, 3 to 4mm cable outlet. The reliable and secure bayonet locking system is easy to operate and can withstand high vibrations. Housing outer diameter is only 12mm. It has a strain relief for added strength.
- 1500V Rated impulse voltage
- ≤3mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP40 Protection rating
Uygulamalar
Portable Devices, Consumer Electronics, Medical, Industrial
Teknik Özellikler
Circular Industrial
Cable Mount Receptacle
Solder Socket
Nylon (Polyamide) Body
Bronze
710 Series
2Contacts
-
-
Gold
Teknik Belgeler (2)
İlgili Ürünler
2 Ürün Bulundu
Mevzuat ve Çevre
En son önemli imalat işleminin gerçekleştirildiği ülkeMenşe Ülke:Germany
En son önemli imalat işleminin gerçekleştirildiği ülke
RoHS
RoHS
Ürün Uyumluluk Belgesi
