86701CY
Multipair Cable, Data, Per M, Screened, 1 Pair, 22 AWG, 0.38 mm²
Yeniden stokta olduğunda beni bilgilendir
| Miktar | |
|---|---|
| 1+ | 8,790 € |
| 5+ | 7,910 € |
| 10+ | 7,330 € |
Ürün Bilgileri
Ürün Genel Bakış

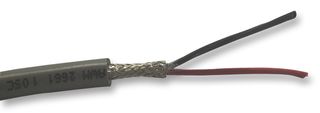

The 86701CY is a 22AWG 1-pair Xtra-Guard® continuous flex screened Data Cable with finely stranded tinned copper conductors and lubricated semi-rigid PVC insulation. It is designed to provide excellent performance in high-flex, high torsion and continuous-flex applications. Its rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6. It is shielded with 25% minimum overlap of aluminium/polyester foil, tinned copper braid with 85% shield coverage.
- CPR: Not Yet Qualified
- Supra-shield provides precise EMI interference resistance
- IP67/NEMA 6 Protection
- 17.3lb Maximum pull tension
- 45Ω Characteristic impedance
- Up to 6-million flex life cycles
Uygulamalar
Communications & Networking, Computers & Computer Peripherals, Robotics, Automation & Process Control, Industrial
Teknik Özellikler
Screened
22AWG
-
Grey
300V
Tinned Copper
Xtra-Guard Flex Series
1 Pair
0.38mm²
-
19 x 0.16mm
PVC
5.4mm
No SVHC (21-Jan-2025)
