FGG.00.304.CLAD35 -

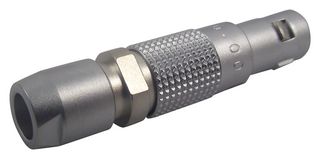

Circular Connector, 00 Series, Cable Mount Plug, 4 Contacts, Solder Pin, Push-Pull, Brass Body

LEMO FGG.00.304.CLAD35
LEMO FGG.00.304.CLAD35

Resim yalnızca örnek vermeyi amaçlamaktadır. Lütfen ürün açıklamasına bakın.

Üretici:
LEMO LEMO
Üretici Parça No.:
FGG.00.304.CLAD35
Sipariş Kodu:
3817210
Ürün Çeşitleri
00 Series
Teknik Bilgi Formu:
(EN)
Tüm Teknik Belgeleri Görüntüleyin

Ürün Bilgileri

:
-
:
Cable Mount Plug
:
-
:
Brass Body
:
Push-Pull
:
4Contacts
:
00 Series
:
Chrome
:
Solder Pin
benzer ürünleri bulun Benzer ürünler bulmak için yukarıdaki özellikleri seçin ve değiştirin.

Ürün Genel Bakış

The FGG.00.304.CLAD35 is a 4-contact standard self-latching Circular Connector with alignment key which allows higher contact density and prevents all errors in alignment and male solder termination. The circular connector is perfectly screened and designed to guarantee very low resistance to shell electrical continuity, particularly adapted to applications where electromagnetic compatibility (EMC) is important.
  • Security of push-pull self-latching system
  • 360° Screening for full EMC shielding
  • Multiple key options to avoid cross mating of similar connectors
  • PEEK insulator
  • >5000-cycle Endurance
  • 8.7mR Maximum resistance
  • >1000h Salt spray corrosion test
  • 2.8 to 3.5mm Cable fixing
  • IP50 Protection rating
  • -55 to +250°C Temperature range

Uygulamalar

Medical, Communications & Networking, Audio, Imaging, Video & Vision, Industrial, Aerospace, Defence, Military
